MN MODULAR

MediorNet Modular allows the customers to configure the mainframe to their requirements. The frame can be filled with various Media and Link cards, as needed for the specific application.

All modules and cards are hot swappable. Redundant power supplies guarantee maximum reliability. The optimized cooling concept of MediorNet results in a very low-noise system. The horizontal air ow within the device allows for effective cooling without the need for additional rack space below or above the MediorNet mainframe.

MediorNet frames can be rack mounted in various positions, e.g. with all connectors on the front or on the rear side, or recessed to allow cabling from the front but without connectors or cables exceeding the rack’s dimensions. The IEC connectors can be located front or rear independent from the other cabling.

MediorNet offers Link Cards with and without integrated CWDM multiplexing to network MediorNet mainframes with a bandwidth of up to 76.5 Gbit/s on a single fiber link.

MediorNet‘s standard fiber transceivers have an optical budget of 18 dB minimum, allowing for distances of up to 40 km (25 miles). A MediorNet fiber link always consists of duplex fiber to allow bi-directional signal transport. MediorNet CWDM Link Cards can also include external optical signals and transport them transparently through the system. All MediorNet Link Cards provide signal monitoring and link status information, which can be monitored via status LEDs and system wide via the MediorWorks software and SNMP network management systems.

MediorNet Mainframes can be easily configured with the input and output cards needed for a specific installation.

All Media Cards support multiple video standards and on-board signal processing and conversion, reducing the number of individual cards to a minimum. These signal standards and processing features can be updated via software, securing the hardware investment for future development.

Mainframe & Processing Card

MN-2RU Modular Mainframe

  • 1 x slot for the processing card
  • 6 x high-speed card slots (four with a 2x 4.25 Gbit/s and two with a 4x 4.25 Gbit/s connection to the backplane, designed for high data rate signals such as video signals or CWDM link cards)
  • 2 x low-speed card slots (each one with 2x 125 Mbit/s connection to the backplane, designed for low data rate signals such as audio signals)
» Datasheet
» Contact sales

MN-XSS 2.0 Processing Card

The MN-XSS Processing Card serves as the heart of any MediorNet mainframe. It includes extensive LED status indicators for all cards and modules. The card ensures the optimal signal path and best use of available bandwidth. It also provides a universal router for all the individual media signals contained in the 16x16 high- speed MediorNet signals. MediorNet allows the user to build up a decentralized high-speed routing (<40ms) environment consisting of multiple MediorNet nodes. In addition, the card features a wide range of standard interfaces. These include:

  • 1x 100BaseT Ethernet connection for system configuration or external router control systems
  • 1x 1000BaseT Gigabit Ethernet for PC networks (transparent tunneling)
  • 2x Artist intercom panel connectors (1x RJ45, 1x BNC, usable independent of one another)
  • 2x bi-directional MADI interfaces (1x optical via SFP module, 1x electrical via two BNC connectors) *The use of RIEDEL SFPs is required.
  • 1x Sync In & 1x Sync Out via BNC connectors for frame synchronization
» Datasheet
» Contact sales

Link Cards

MN-LNK2/LNK4 – 2/4 Channel Link Card

The MN-LNK2 Link Card features two SFP slots (MN-LNK4: four SFP slots) for single-mode and multi-mode SFP transceivers of any wavelength with a 4.25 Gbit/s transfer rate. The card allows for the interconnection of multiple MediorNet frames via two bi-directional duplex fiber connections (MN-LNK4: four bi-directional connections). The use of RIEDEL SFPs is required.

» Datasheet
» Contact sales

MN-LNK8 CWDM – 8 Channel CWDM Link Card

The MN-LNK8CWDM Link Card features integrated CWDM multiplexing/de-multiplexing. The card multiplexes four MediorNet 4.25 Gbit/s signals plus four external fiber ports onto one single-mode duplex fiber, accessible via LC connectors. The external fiber ports are connected via four LC connectors. MN-LNK8 CWDM is available with different wavelengths.

» Datasheet
» Contact sales

MN-LNK10 CWDM – 10 Channel CWDM Link Card

The MN-LNK10CWDM Link Card features integrated CWDM multiplexing/de-multiplexing. The card multiplexes eight bi- directional MediorNet 4.25 Gbit/s signals plus two external fiber ports onto one single-mode duplex fiber, accessible via LC connector. The external fiber ports are connected via two LC connectors.

» Datasheet
» Contact sales

MN-LNK18 CWDM – 18 Channel CWDM Link Card

The MN-LNK18CWDM Link Card features integrated CWDM multiplexing/de-multiplexing. The card multiplexes eight MediorNet 4.25 Gbit/s signals plus up to ten additional external fiber ports via an ADD port onto one single-mode duplex fiber, accessible via LC connector and transporting up to 76.5 Gbit/s.

» Datasheet
» Contact sales

MEDIA CARDS

MN-ST-AL2 – Studer A-Link Interface Card

The MN-ST-AL-2 provides two ports each with redundant interfaces for connecting Studer mixing consoles via the STUDER A-Link protocol to Riedel MediorNet Modular frames. The card supports all STUDER Vista 5 and Vista 9 as well as OnAir 3000 consoles. The use of RIEDEL SFPs is required.

» Datasheet
» Contact sales

MN-HD-4I – 3G/HD/SD-SDI Input Card (Electrical)

The MN-HD-4I Card provides four inputs with BNC connectors for four HD/SD-SDI/ ASI or two 3G-SDI video sources. The card supports all relevant video standards up to 1080p@60Hz. Each input operates independently and is equipped with auto format detection and integrated signal processing and conversion features.

» Datasheet
» Contact sales

MN-HD-4O – 3G/HD/SD-SDI Output Card (Electrical)

The MN-HD-4O Card provides four outputs with BNC connectors for four HD/SD-SDI/ ASI or two 3G-SDI video devices. The card supports all relevant video standards up to 1080p@60Hz. Each output operates independently and is equipped with auto format detection and integrated signal processing and conversion features.

» Datasheet
» Contact sales

MN-HDO-4IO – Universal Video I/O Card (Optical)

The MN-HDO-4IO is a universal input and output card offering four bi-directional SFP ports that can be individually equipped with specially developed video interfacing SFPs for HDMI I/O, DVI or composite PAL/NTSC.

» Datasheet
» Contact sales

MN-HD-6-IO – 3G/HD/SD-SDI Input/Output Card

The MN-HD-6-IO Card provides two inputs, two outputs and two user definable input or output connectors for six HD/SD-SDI/ASI or three 3G-SDI video sources. The card supports all relevant video standards up to 1080p@60Hz. Each input operates independently and is equipped with auto format detection and integrated signal processing and conversion features.

» Datasheet
» Contact sales

MN-HDP-6-IO – 3G/HD/SD-SDI I/O Card with Enhanced Processing

The MN-HDP-6-IO Card provides the same connectors and features as the MN-HD-6- IO Card. In addition, the MN-HDP-6-IO Card includes additional processing power for features such as a Quad Split or Format Converters. All processing power is available as a system-wide network resource.

» Datasheet
» Contact sales

MN-MIO – Multi I/O Interface Card

The MN-MIO Card allows for the connection of the MN-MBP Multi-I/O Breakout Panel to the MediorNet Mainframe via 2x 44 Pin Sub-D connectors. This Interface Card is available as electrically or transformer balanced version.

» Datasheet
» Contact sales

MN-Z-MBP – Multi-I/O Breakout Panel

The MN-MBP breakout panel offers eight AES, eight 4-wire connections (electronically balanced) over CAT-5, twelve GPIOs and four serial connections via Sub-D 9 pin connectors.

» Datasheet
» Contact sales

MN-MA2-E/O – MADI Interface Card (Electrical/Optical)

The MN-MA2-EO Card is a 128 channel MADI interface providing one electrical MADI port via two BNC connectors and one optical MADI port via a SFP module (MN-MA2-O: two optical MADI ports / MN-MA2-E: two electrical MADI ports). The use of RIEDEL SFPs is required.

» Datasheet
» Contact sales

MN-ETH6 – Ethernet Card

The MN-ETH6 Card is an Ethernet card with six Ethernet ports providing tunneling for up to six 1 Gbit Ethernet connections. The ports‘ bandwidth is freely scalable to offer maximum fiber utilization. Each port of the card can be equipped either with optical or electrical connectors. The use of RIEDEL SFPs is required.

» Datasheet
» Contact sales

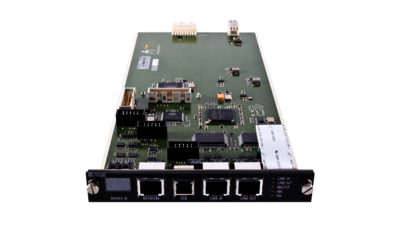

MN-RN300 – ROCKNET Audio Interface Card

In addition to the MADI interfaces available on the processor card and the AES and 4-Wire connections available with the Multi-I/O Breakout Panel, the MN-RN300 Card provides an uplink and downlink CAT5 connector for Riedel RockNet digital audio networks to implement an audio break-out of up to 128 channels. RockNet provides a redundant CAT5 ring network for the distribution of audio and delivers state-of-the-art audio interfacing for any MediorNet installation.

» Datasheet
» Contact sales
