RiMotion

Riedel RiMotion live replay solutions are the most intuitive and scalable options in the market, breaking with traditional concepts and bringing a modernized user experience to live replay.

RiMotion solutions are available in five different bundles, so you’ll find just the right one for your production. With RiMotion R6, R8, R10, R12 and R16  you get to choose from 6 to 16 configurable channels for 4 to 12 camera inputs, while the R84 and R166 offers HDR and UHD support with options for 4 or 6 UHD channels and up to 8 or 16 1080p HDR channels.

Riedel RiMotion offers a pioneering solution combining extensive slow-motion
capabilities, including super slow-motion (SSM) camera support, with Simplylive’s acclaimed touchscreen UI approach.

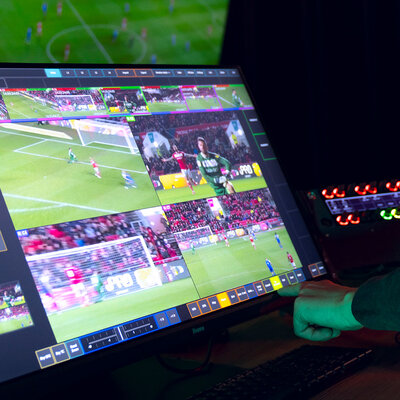

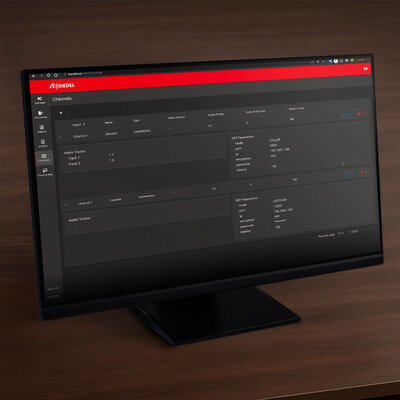

The intuitive user interface that has become a landmark of the ViBox product range, has been further optimized for RiMotion. All features are concentrated in a clear and simple to use touchscreen interface, that even new users can learn to operate in minutes. Additionally, the system comes with a dedicated RCU slow motion remote controller (RCU), integrated with the touch UI. This allows the best operator experience with the combination of the dedicated remote and touchscreen interface.

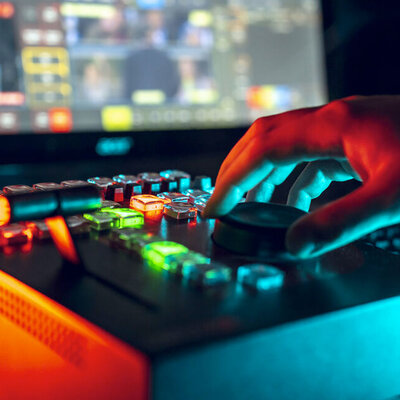

RiMotion is designed for the way operators want to work. Some may prefer the familiar Replay Remote Controller with an intuitive button layout and ultra-responsive jog wheel. Others love working with our touch-screen UI, with easy-to-access controls and great feeling scroll pad. And some operators want to work with both at the same time, which is why we offer both... so people can work exactly the way they want.

The RiMotion architecture also brings flexibility for remote, at-home productions. The system allows the backend hardware to be located on-site, while the UI can be extended via Internet to the production facility. This allows for a smaller footprint, less people needed on location and an unparalleled level of workflow flexibility.

Riedel RiMotion - See it, Love it, Replay it

Hardware

R6 / R8 / R10

  • R6: 6Ch 1080p, 8bit
  • R8: 8Ch 1080p, 8bit
  • R10: 10Ch 1080p, 8bit
  • Compact 1RU Unit
  • Single Operator
  • Redundant PSU
  • Dedicated RCU
  • SSM optional license
  • Networking of servers

R12 / R16

  • R12: 12Ch 1080p, 8bit
  • R16: 16Ch 1080p, 8bit
  • Compact 2RU Unit
  • Single or Dual Operator
  • Option for 3rd user (R16)
  • Redundant PSU & RAID Storage
  • Large Recording Capacity
  • 2x Dedicated RCUs
  • SSM optional license
  • Networking of servers

R84

  • Compact 2RU Unit
  • Single Operator with option for 2nd Operator
  • Redundant PSU & RAID Storage
  • Large Recording Capacity
  • 8 channel 1080p, 10bit or 4 channel UHD, 10bit
  • Dedicated RCU
  • SSM optional license
  • Networking of servers

R166

  • Compact 2RU Unit
  • Single or Dual Operator with option for 3rd Operator
  • Redundant PSU & RAID Storage
  • Large Recording Capacity
  • 16 channel 1080p, 8bit/10bit or
  • 6 channel UHD, 8bit (3 In/2 Out, 10bit)
  • 2x dedicated RCUs
  • SSM optional license
  • Networking of servers

RiMotion Workflow Examples

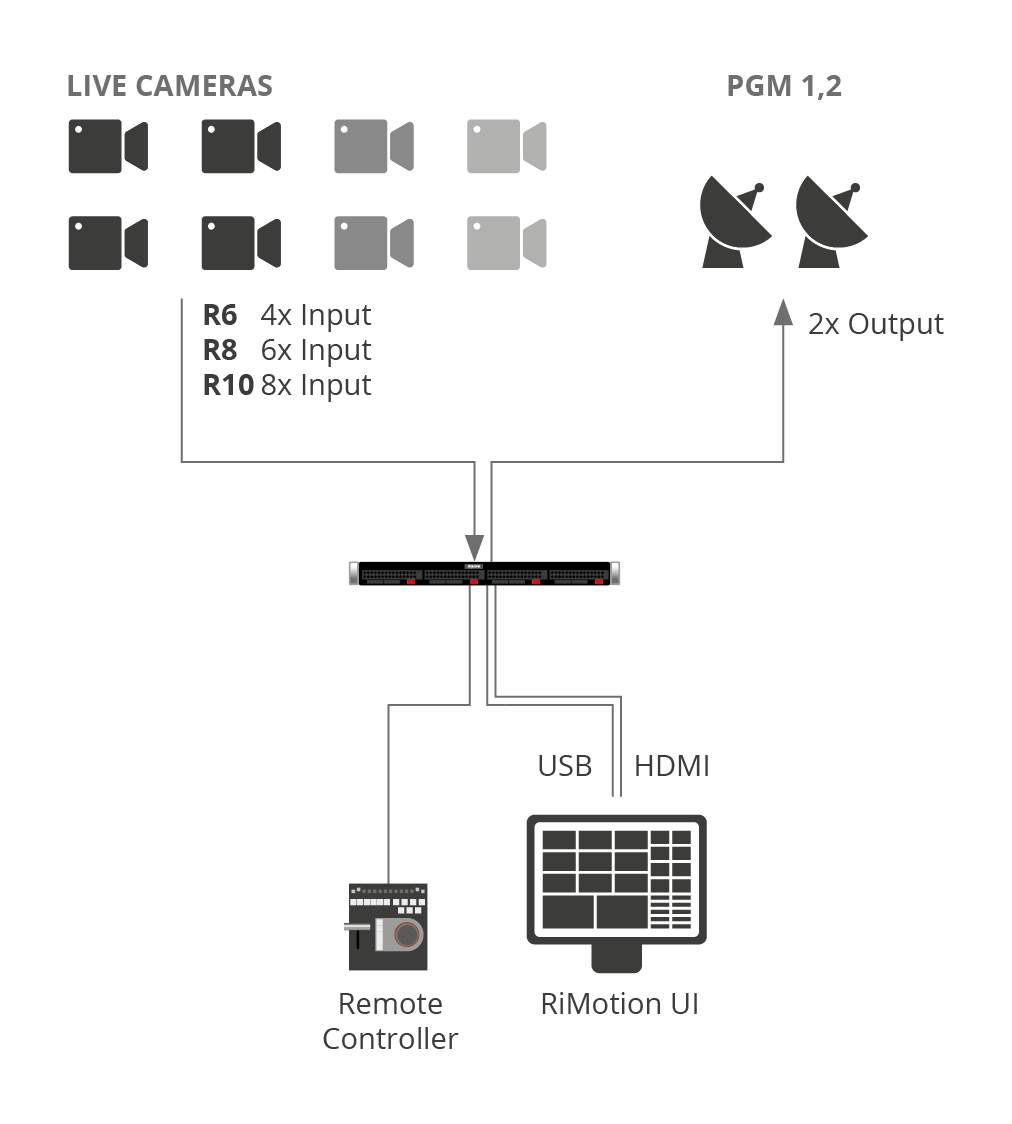

RiMotion R6 / R8 / R10 Single Operator Workflow

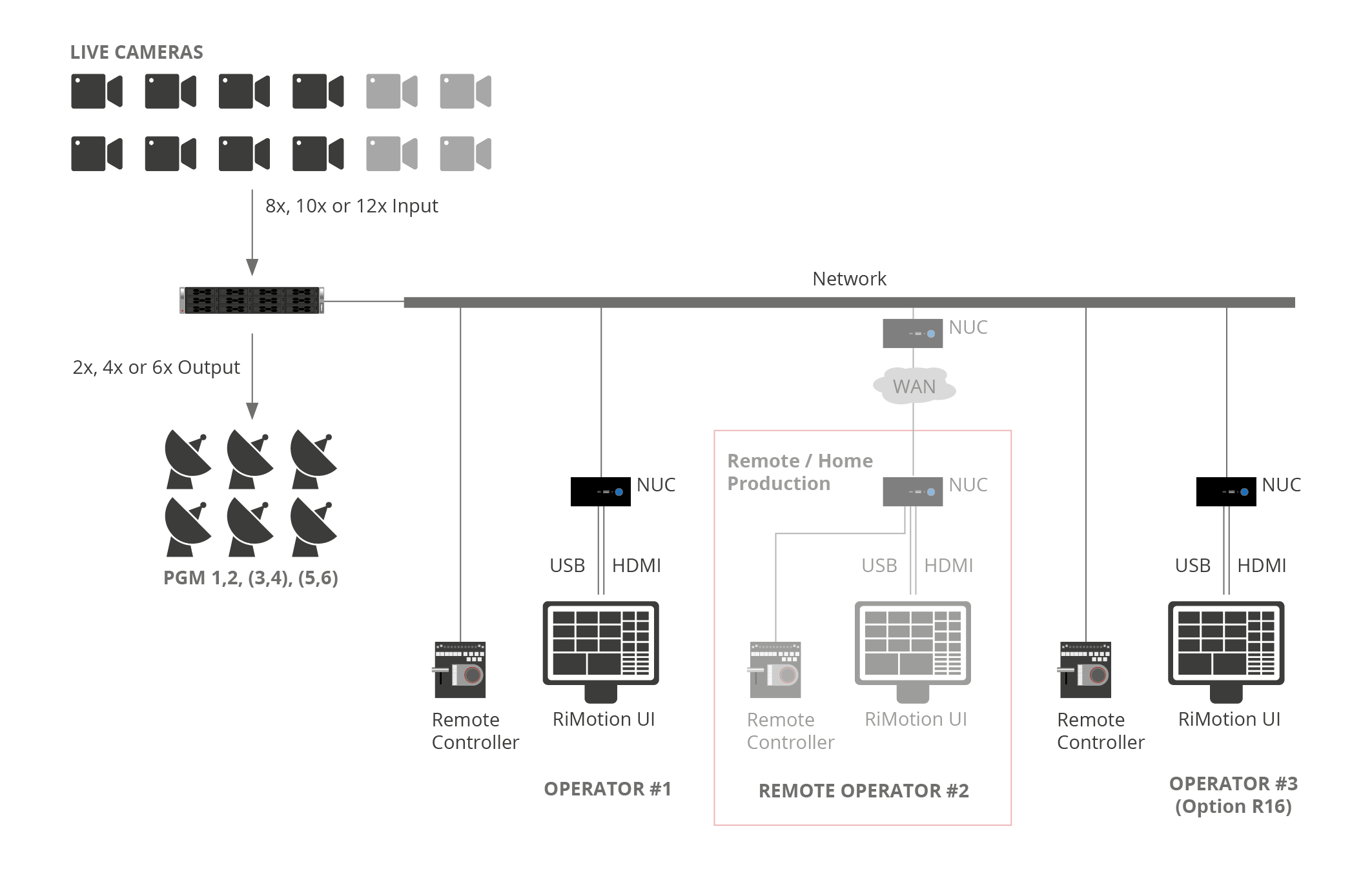

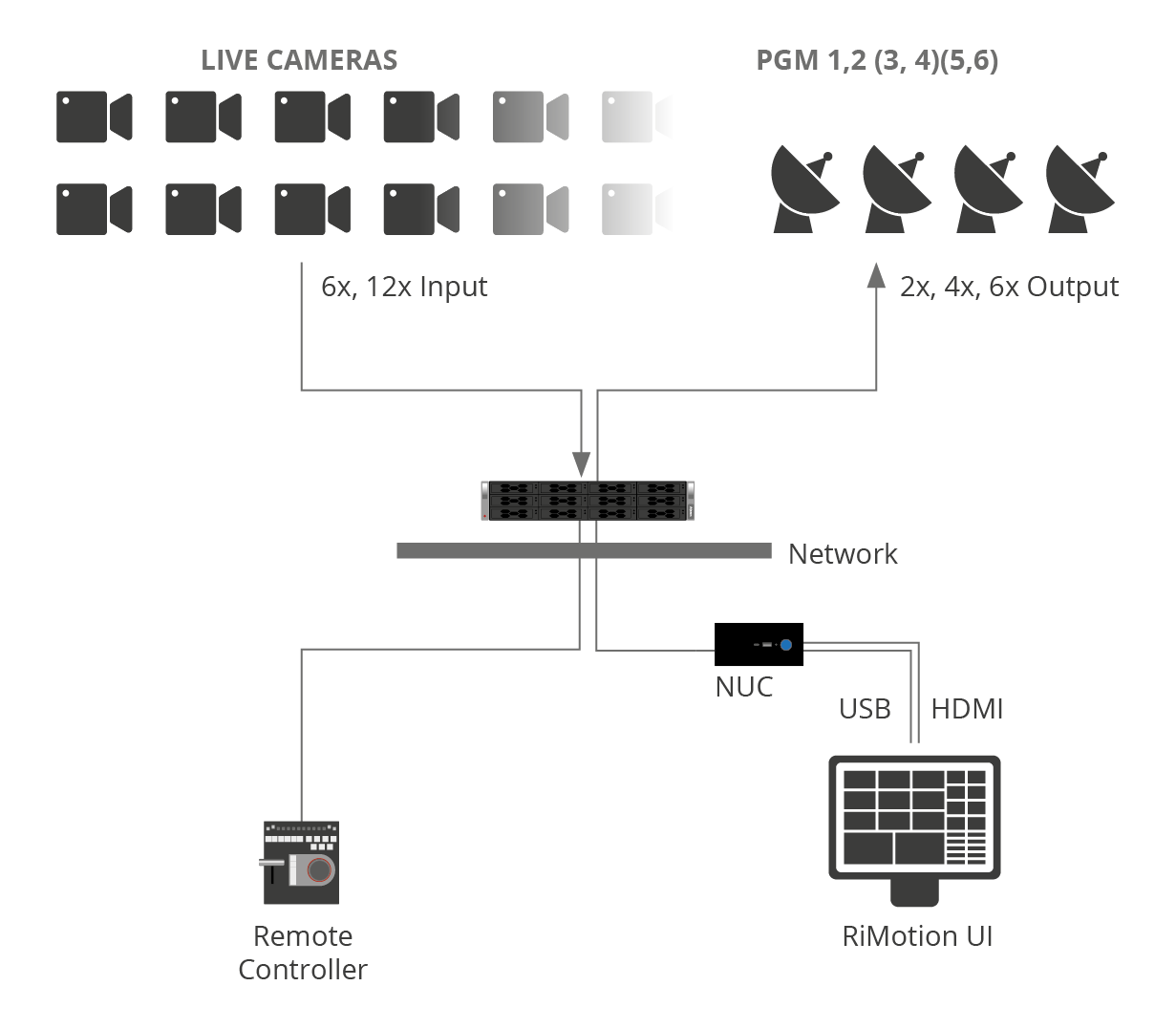

RiMotion R12 Dual / Remote Operator Workflow

RiMotion R84 UHD Configuration
