BOLERO WIRELESS INTERCOM

As an all-new wireless intercom system capable of supporting up to 250 beltpacks and 100 antennas in a single deployment, Bolero is a true game-changer. Bolero redefines the wireless intercom category with features such as its ADR (Advanced DECT Receiver) with multi-diversity and anti-reflection technology for greater RF robustness, “Touch&Go” NFC beltpack registration, and versatile operation as a wireless beltpack, a wireless keypanel, or — in an industry first — a walkie-talkie.

With the addition of the newest Bolero Standalone 2110 (AES67) mode, there are now three network modes available for Bolero systems – each of them dedicated to specific applications.

  • Bolero Integrated leverages the powerful Artist infrastructure, including SmartPanels and extensive I/O connectivity.
  • Bolero Standalone Link provides plug & play simplicity that is especially suited to smaller installations, portable deployments, or cases when Bolero needs to be interfaced to other systems without the need for an Artist matrix.
  • Bolero Standalone 2110 (AES67) enables users to set up a standards-based (SMPTE 2210/AES67) IP network with no Artist required.

The Bolero high-clarity voice codec provides both higher speech intelligibility and more efficient use of RF spectrum supporting twice the number of beltpacks per antenna for the same radio bandwidth as other DECT-based systems. The Riedel-exclusive ADR technology combines a unique receiver design with multiple diversity elements specifically designed to reduce sensitivity to multipath reflections, making Bolero useable in challenging RF environments where other systems have great difficulty.

The beltpack itself features six intercom channels and a separate “Reply” button for a quick reply to the last caller. Bolero’s sunlight readable and dimmable display can be rotated so that it is readable in any orientation. Also, in an industry first, the beltpack can be used without a headset like a walkie-talkie radio utilizing an integrated mic and speaker. Bolero beltpacks support Bluetooth, allowing either a Bluetooth headset or a Smartphone to be connected. When a Smartphone is connected, the beltpack can act like a car’s “hands free” setup so the user can receive calls on their phone and talk and listen via their beltpack headset. Users can also inject phone calls directly into the intercom channels, providing new levels of workflow flexibility.

Based on Riedel’s extensive Managed Technologies experience, the beltpack uses a combination of premium materials, including high-impact plastics and rubber overmolds, making it both tough and comfortable to use in any situation.

Hardware

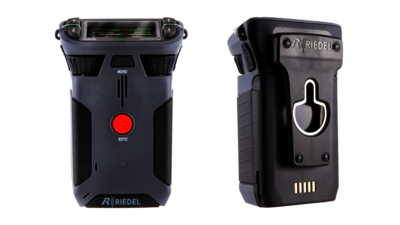

Bolero 6-key Beltpack

  • Next generation, digital, license free 1.9GHz DECT band
  • Up to six full-duplex keys plus convenient REPLY button to last caller
  • Riedel-exclusive ADR receiver technology overcomes multipath issues
  • Modern high-clarity voice codec increases beltpack to antenna density
  • Integrated Bluetooth technology for wireless headsets or phone connection
  • IP-65 environmental sealing
  • Tough, ergonomic beltpack built to survive
  • NFC means no registration headaches!
  • Touch the beltpack to the antenna and GO!
  • Can be used as a beltpack, a portable desktop keypanel, or a walkie-talkie
  • Integrated mic and speaker for headset-free operation

Bolero Active Antenna

  • Up to 250 beltpacks and 100 antennas per Bolero Net
  • Intelligent use of bandwidth results in 10 beltpacks per antenna
  • Decentralized SMPTE 2110-30 (AES67) IP-networked antennas
  • Fully re-programmable FPGA to handle future networks

Bolero 6-key Beltpack - 2.4Ghz

  • Next generation, digital, 2.4GHz band
  • Up to six full-duplex keys plus convenient REPLY button to last caller
  • Riedel-exclusive ADR receiver technology overcomes multipath issues
  • Modern high-clarity voice codec increases beltpack to antenna density
  • IP-65 environmental sealing
  • Tough, ergonomic beltpack built to survive
  • NFC means no registration headaches!
  • Touch the beltpack to the antenna and GO!
  • Can be used as a beltpack, a portable desktop keypanel, or a walkie-talkie
  • Integrated mic and speaker for headset-free operation

Bolero Active Antenna - 2.4GHz

  • Up to 250 beltpacks and 100 antennas per Bolero Net
  • Intelligent use of bandwidth results in 8 beltpacks per antenna
  • Decentralized SMPTE 2110-30 (AES67) IP-networked antennas
  • Fully re-programmable FPGA to handle future networks

Installation Types

BOLERO Integrated

  • Seamless comms environments with the full power of Artist, including SmartPanels and extensive I/O connectivity
  • Multiple fiber-connected switch cascades for long distances
  • Antenna distribution via SMPTE 2110-30 (AES67) IP network
  • Extensive connectivity options including SMPTE 2110-30/31 (AES67), AES3, MADI, Dante and analogue 4-wires
  • Configuration via Director, Artist’s powerful configuration tool
  • 500 conferences and unlimited point-to-point connections
  • 250 beltpacks, 100 antennas

BOLERO Standalone Link

  • Daisy chain or redundant ring antenna network
  • Plug&Play simplicity
  • EPS-1005 PSU powers up to five antennas
  • Up to 300m CAT5 cable between antennas
  • Analogue 4-wires and GPIOs via optional NSA-002A throwdown box
  • Integrated web browser for configuration (Artist not required)
  • 12 partylines and unlimited point-to-point connections
  • 100 beltpacks, 100 antennas

BOLERO Standalone 2110 (AES67)

  • Antenna distribution via SMPTE 2110-30 (AES67) IP network
  • Multiple fiber-connected switch cascades for long distances
  • Analogue 4-wires and GPIOs via optional NSA-002A throwdown box
  • Integrated web browser for configuration (Artist not required)
  • 12 partylines and unlimited point-to-point connections
  • 100 beltpacks, 100 antennas

Accessories

Color-coded Beltpack Covers

  • Additional protection for Bolero beltpacks
  • Create groups, visually differentiate and personalize beltpacks
  • Available in Black, White, Yellow, Blue, Green, Grey, Violet, and Red

Beltpack Charger (CHG-1005)

  • 5-bay tabletop or wall mount charger for Bolero beltpacks or spare batteries
  • Network capable
  • Internal universal PSU included

External Power Supply (EPS-1005)

  • External power supply, powers up to 5 antennas via CAT5 connection
  • 2.5m / 8 ft XLR-XLR DC power cable & IEC cable
  • Wall and pole mountable

Charger Rack Mount Kit (RMK-1002)

  • 19” rack mount kit
  • 4 RU
  • Holds two 5-bay chargers
  • Lockable drawer with front and rear hold in

Network Stream Adapter (NSA-002A)

  • 9,5” 1RU (Half-Size Rack)
  • Bi-directional signal conversion between analog signals and AES67
  • 6x 4-wire analog feed
  • 3x GPI / 3x GPO
  • Includes stagebox protection kit

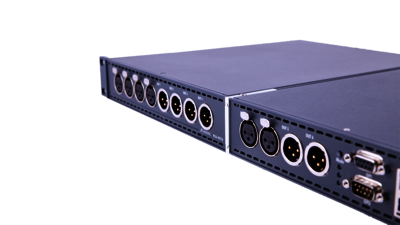

Stagebox Rack Mount Kit (RMK-001)

  • 1RU rack mount kit
  • For one or two NSA-002A half 19’’ devices
