Gateway Bundles
MediorNet FusioN ST 2110-to-Monitor Gateway Bundles
Riedel’s new MediorNet FusioN ST 2110-to-Monitor Gateways are pre- configured IP edge conversion solutions for HDMI® and SDI monitors, designed to simplify display connectivity in modern IP-based production environments. Built on Riedel’s compact, software-defined FusioN platform, these converters bridge ST 2110 video, audio, and ancillary data directly to standard HDMI® or professional SDI monitors – without the need for external processing.
Available in single- and multi-channel configurations, the FusioN Gateway Bundles support HD, 3G, and UHD formats, flexible SFP-based I/O, and advanced ST 2110 and NMOS interoperability for seamless integration into IP workflows. All converters feature a compact footprint suitable for mounting behind displays or in space-constrained equipment areas, with the FusioN 3 FL HDMI® variant offering fanless operation for noise-sensitive installations.
Delivered fully configured and ready to deploy, the FusioN ST 2110-to-Monitor Gateways reduce installation complexity and deliver true plug-and-play simplicity.
KEY BENEFITS
- Quiet and compact frame can be installed neatly on the back of your monitors
- Versatile software-defined hardware
- Flexible inputs and outputs via a selection of SFP modules
- Ultra-dense I/O capacity optimizing cost of network and fiber links
- Cabling is simplified by bringing IP over fiber to the device
- IP enabled - any source, any essence, anywhere
- Comes with free MN SET configuration tool
Hardware

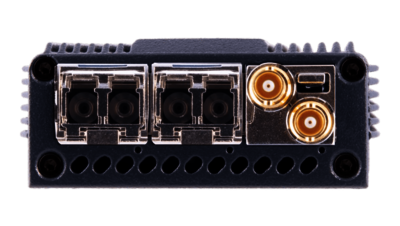

FusioN 3 SDI TX 2
Miniature single channel IP ST2110 to SDI output gateway
- Two SDI outputs
- Support of HD/3G and UHD
- YUV/RGB 4:2:2/4:4:4 10/12 bit formats
- Support of ST2110-20/30/31/40 and ST2022-7
- Support of NMOS or Ember+ Bess
- Clean switching
- Single power supply

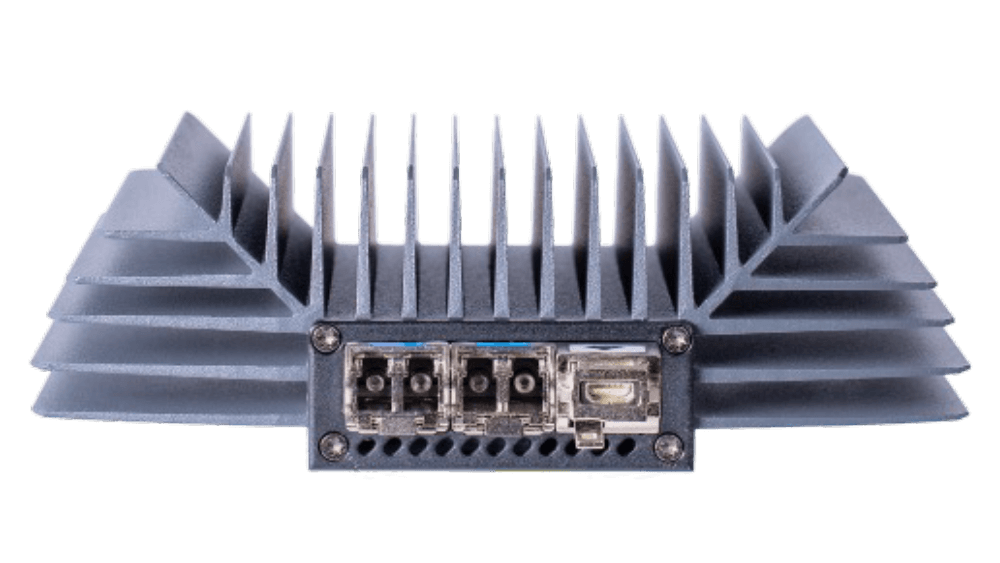

FusioN 3 FL DGX TX 1
Miniature single channel IP ST2110 to HDMI® output fanless converter
- One HDMI 2.0 output
- Support of HD/3G and UHD
- YUV/RGB 4:2:2/4:4:4 10/12 bit formats
- Support of ST2110-20/30/31/40 and ST2022-7
- Support of NMOS or Ember+ Bess
- Clean switching
- Single power supply
- Fanless

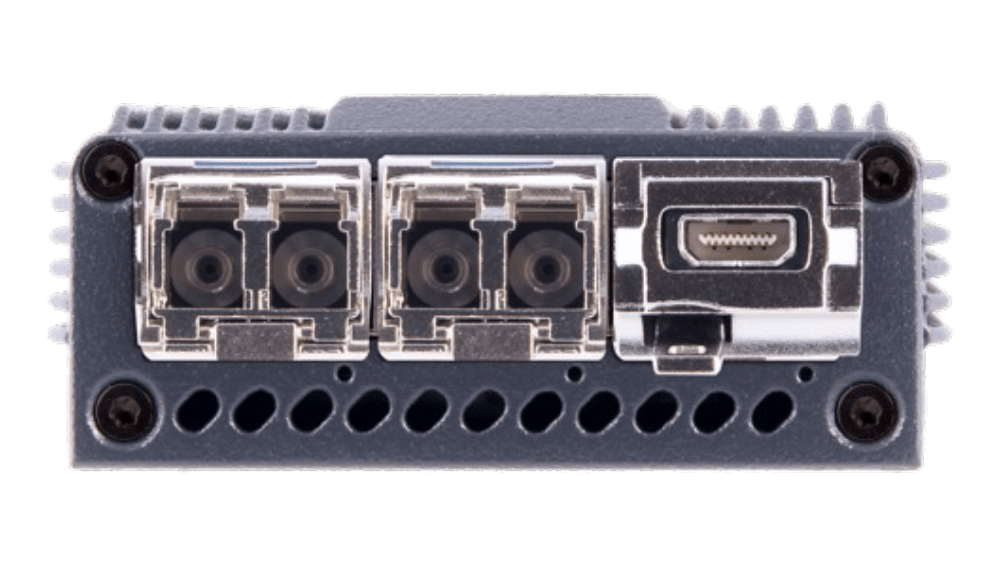

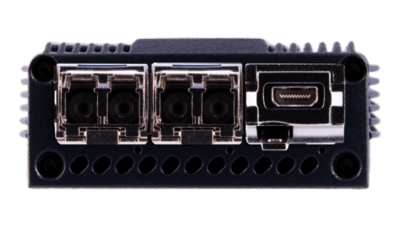

FusioN 3 DGX TX 1
Miniature single channel IP ST2110 to HDMI® output gateway
· One HDMI 2.0 output
· Support of HD/3G and UHD
· YUV/RGB 4:2:2/4:4:4 10/12 bit formats
· Support of ST2110-20/30/31/40 and ST2022-7
· Support of NMOS or Ember+ Bess
· Clean switching
· Single power supply

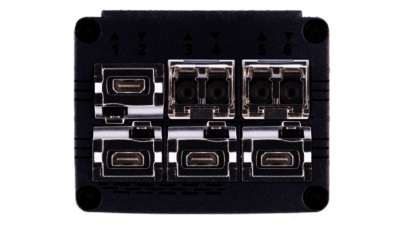

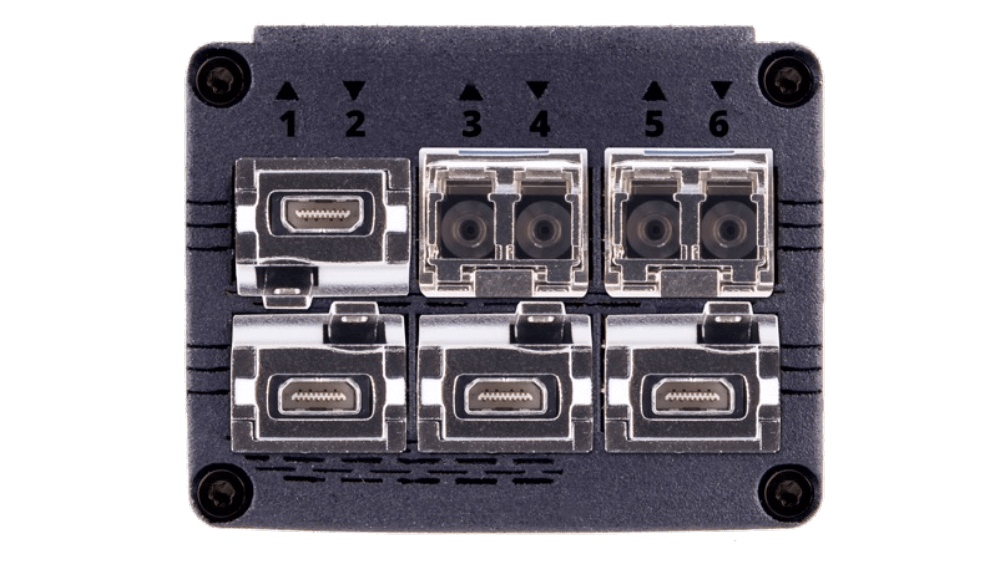

FusioN 6 DGX TX 4
Miniature quad channels IP ST2110 to HDMI® outputs converter
- Four HDMI 2.0 outputs
- Support of HD/3G
- Support of UHD *2x channels only
- YUV/RGB 4:2:2/4:4:4 10/12 bit formats
- Support of ST2110-20/30/31/40 and ST2022-7
- Support of NMOS or Ember+ Bess
- Clean switching
- Single power supply

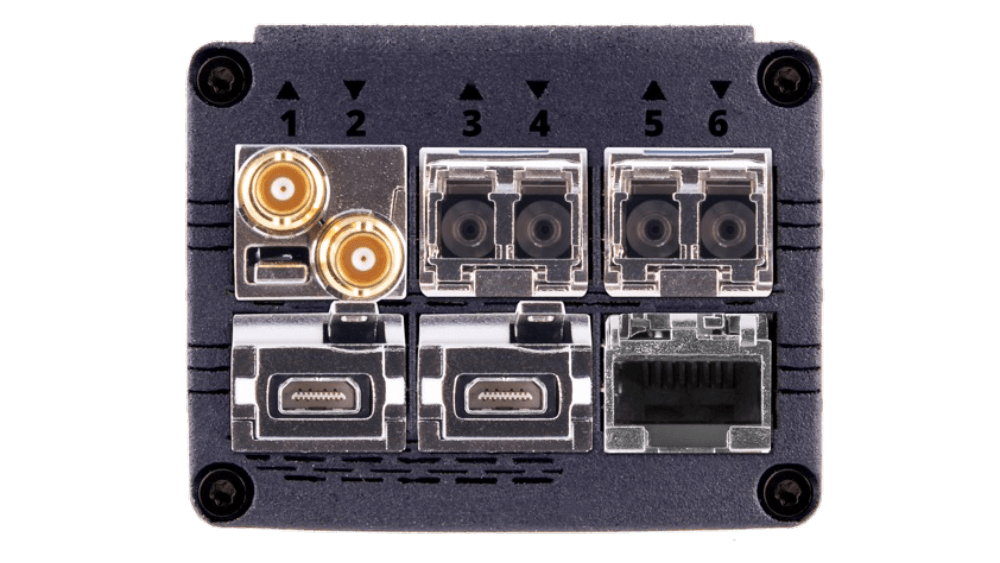

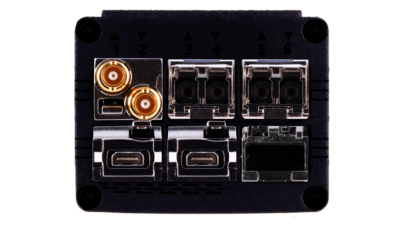

FusioN 6 DGX SDI TX 4 OOB
FusioN 6 Miniature quad channels IP ST2110 to 2x HDMI®+ 2x SDI outputs converter with OOB support
- 4x individual output channels
- Two HDMI 2.0 outputs
- Two SDI outputs
- Support of HD/3G
- Support of UHD *2x channels only
- YUV/RGB 4:2:2/4:4:4 10/12 bit formats
- Support of ST2110-20/30/31/40 and ST2022-7
- Out-of-Band Support
- Support of NMOS or Ember+ Bess
- Clean switching
- Single power supply
